Criteria for Assessing the Quality of Wood-Plastic Composites (WPC)

As we all know, when sourcing WPC materials, quality is just as important as price. So, how exactly do you judge the quality of a WPC board? Looking at the surface is simply not enough.

There are dozens of quality standards for WPC products: strength, toughness, water absorption, flame retardancy, anti-corrosion, anti-oxidation, formaldehyde emission, and so on. However, as a manufacturing facility, it is not feasible for us to purchase dozens of expensive pieces of equipment specifically for testing all these parameters. Instead, we typically send our products to a professional testing laboratory on a regular basis to have them analyzed and to obtain formal test reports. That said, there are six core parameters that must be tested for every single batch, and for these, our factory is equipped with the necessary testing instruments.

In this article, we will explore the six key indicators for evaluating the quality of wood-plastic composite (WPC) boards, along with the methods used to test them. These include: compressive strength testing, steel ball impact testing, buoyancy/density testing, a 72-hour boil test, a 24-hour flexural creep test, and screw-holding capacity. Let’s take a closer look!

💡 Professional Tip:

Before testing, professional factories place samples in a constant temperature and humidity chamber at 23°C and 50% humidity for 24 hours to eliminate environmental variables.

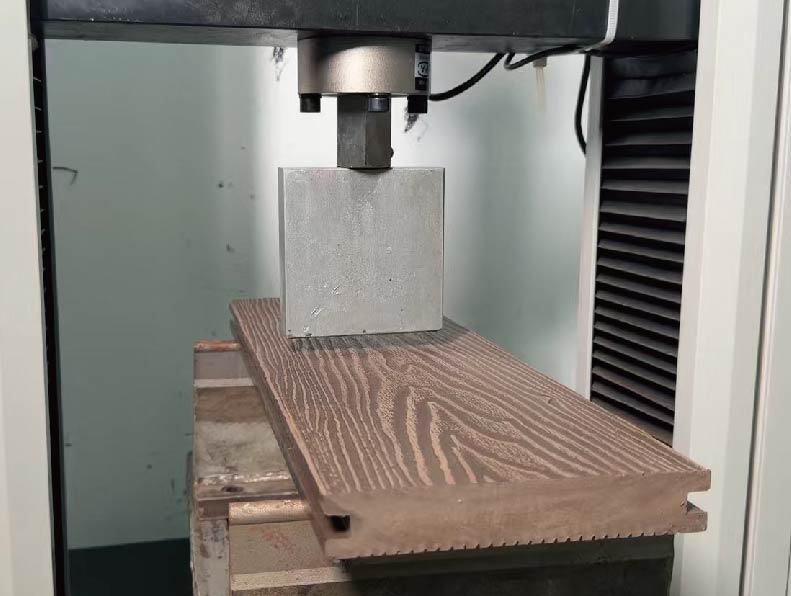

1. Pressure Strength Test: The Lifeline of Load-Bearing and Safety

The most important indicator of a board is its strength, which directly determines the load-bearing capacity and lifespan of the decking outdoors.

How to Test:

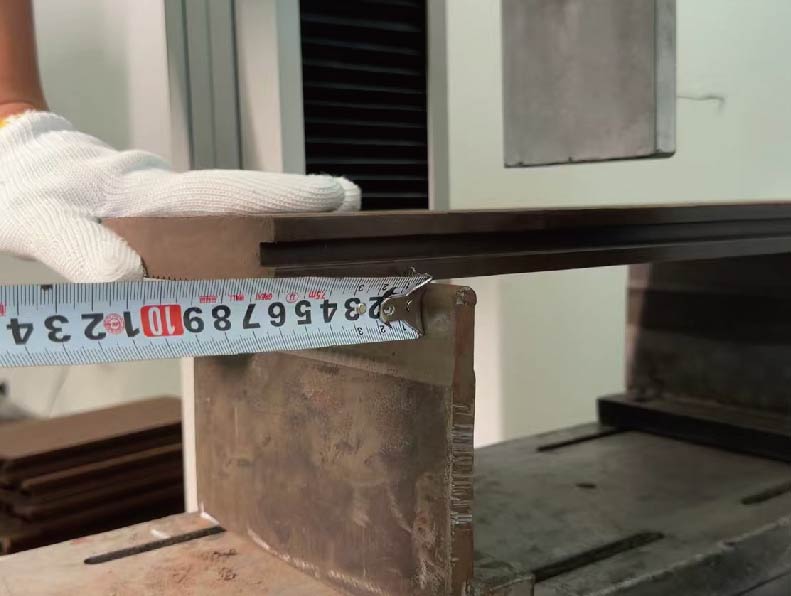

The experimental procedure begins by setting the spacing of the underlying joists on the testing machine—typically 35 cm, though standards vary by country (for instance, the South Korean KS standard specifies 40 cm). Next, the pre-cut wood-plastic composite (WPC) board is placed onto the joists, ensuring it remains perfectly aligned; it is advisable to use a ruler to measure the distance at both ends to prevent any misalignment that could compromise the accuracy of the data. Once set up, the machine is operated to slowly lower the pressure head, applying continuous force. The dimensions of the pressure head are also subject to specific requirements: the national standard mandates a contact area of ​​51 mm by 51 mm. To accommodate the standards of various other countries, we also provide pressure heads in different sizes. Finally, once the board has fractured under the applied pressure, the force value is recorded from the machine's display.

The national standard requires a compressive strength of 3400N. However, high-quality factory products far exceed this: Hollow decking typically reaches over 3800N, while solid decking can exceed 4400N.

Sourcing Tip:

Always ask the factory for a pressure strength test report when sourcing. If they can't even provide this, you need to be very careful before placing an order!

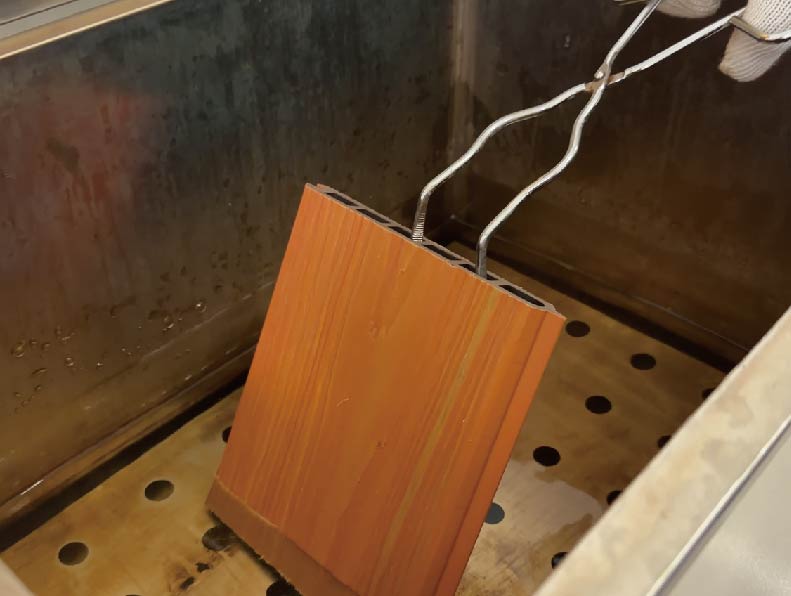

2. 72-Hour Boiling (Water Absorption): The Confidence to Resist Extreme Weather

WPC decking is mainly used outdoors, where it inevitably faces extreme environments like heavy rain and standing water. If the water absorption rate is too high, long-term rain exposure will cause the board to swell and destroy its structural stability.

How to Test:

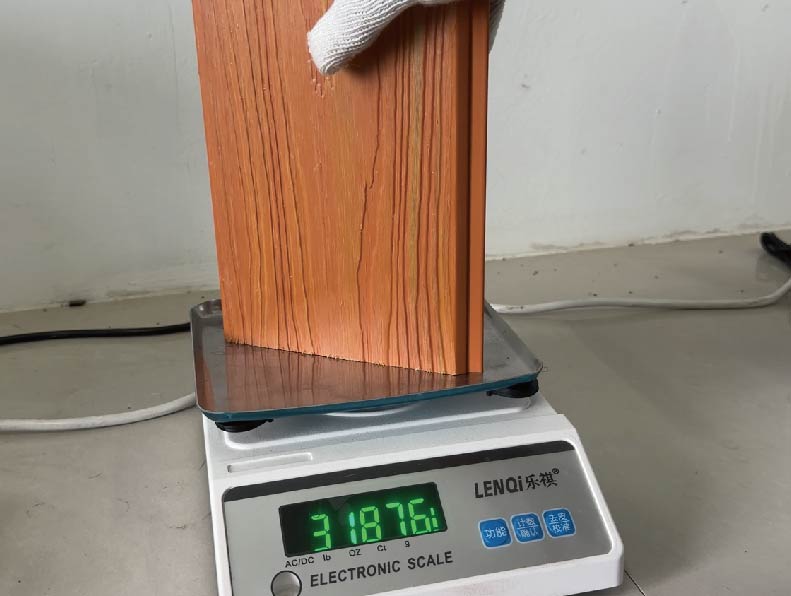

The method is quite straightforward. Place the treated board directly into a boiling water tank, set the temperature to 98°C, and boil it continuously for 72 hours. After taking it out, measure its weight and compare it to the pre-boiling weight to calculate the water absorption rate.

Standard:

The national standard stipulates that the water absorption rate of WPC boards must not exceed 1%. Boards that pass this test can easily handle ordinary outdoor rain without any issues.

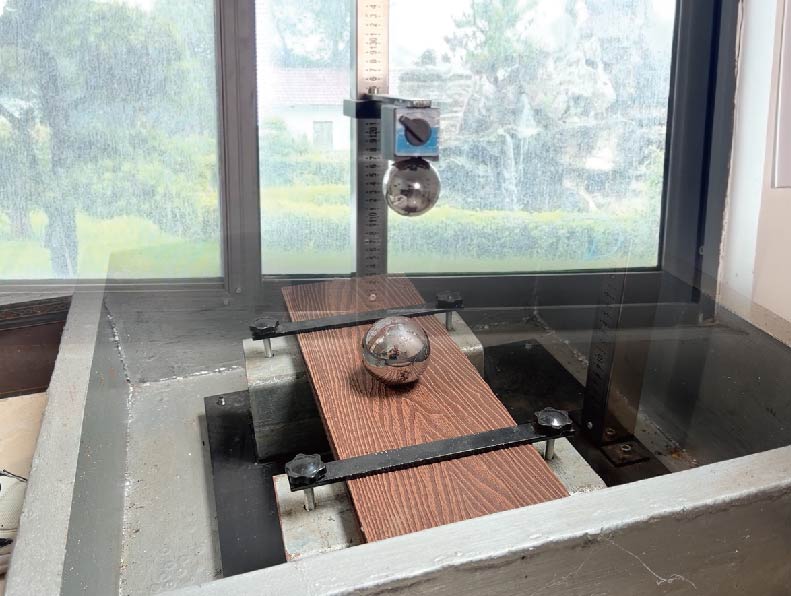

3. Falling Ball Impact Test: Testing Surface Hardness and Durability

Outdoor decking inevitably faces falling objects. The simplest way to test if a board is durable is to "smash" it.

How to Test:

Securely fix the treated board onto the test bench.

Raise the drop point of a steel ball to a height of 1.75 meters.

Turn off the magnetic switch and let the steel ball fall naturally, hitting the board's surface heavily.

Check the damage on the board's surface.

Standard:

The national standard requires the damaged surface area to be less than or equal to 12mm without obvious penetration damage. Truly high-quality boards will show almost no visible damage after such a heavy impact.

Safety Note:

Besides ensuring the correct size and weight of the steel ball, a safety fence must be used under the test bench to prevent the ball from bouncing out and causing injury.

That wraps up the three most hardcore indicators for today: Pressure Strength, Water Absorption, and Falling Ball Impact. Although the testing methods seem simple and brutal, they act as a "magic mirror" that instantly filters out 70% to 80% of inferior boards on the market.

As for the remaining three—Buoyancy Density Test, 24-Hour Bending Creep, and Screw Holding Power—they focus more on the board's "long-term stability" and "installation friendliness." Some manufacturers dare to show you strength reports, but might not dare to show you creep data, because it directly determines whether your outdoor decking will collapse and deform two years from now.

Stay tuned for our next article, where we will take you directly to these three "hidden levels" and reveal how factories control long-term quality. If you are interested, follow us, and let's see the real deal next time!
